Cut holes to access bilge

 Post Reply Post Reply Page  12>
Author
Message
toholthe View Drop Down
Lieutenant
Lieutenant


Joined: 20 September 2017
Location: Norway
Status: Offline
Points: 22
Post Options Post Options   Thanks (0) Thanks(0)   Quote toholthe Quote  Post ReplyReply Direct Link To This Post Topic: Cut holes to access bilge
    Posted: 08 March 2018 at 21:48
I would like to cut holes to the inner liner in my Hanse 400 2007 in order to manually sponge out last drops of water in the bilge. Thinking two or three holes big enough for putting hand trough. Would this be a bad idea strength wise? Should not think round holes in this area would effect strengt, or?

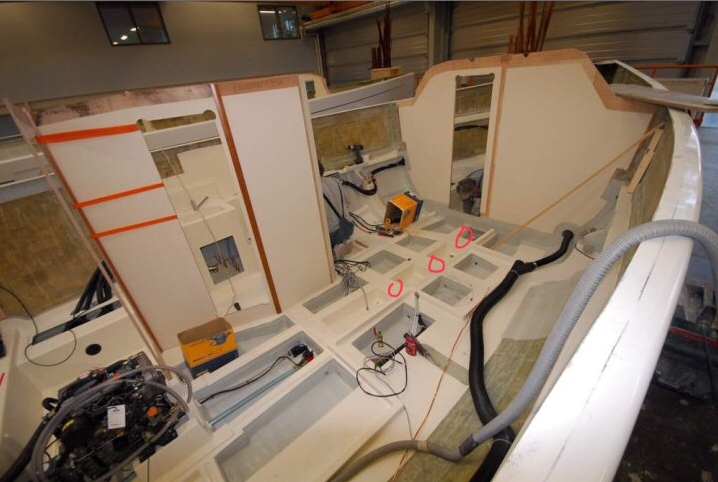

Pic is from Hanse 370, but looks similar in our 400. Marked areas for potential holes

Back to Top
Gaga View Drop Down
Sub Lieutenant
Sub Lieutenant


Joined: 04 April 2017
Location: Denmark
Status: Offline
Points: 18
Post Options Post Options   Thanks (0) Thanks(0)   Quote Gaga Quote  Post ReplyReply Direct Link To This Post Posted: 08 March 2018 at 22:51
I am using a vacuum cleaner to suck the remaining water
Fitting a small soft plastic pipe of about 1 cm diameter and access through the
Holes which are between the floor boxes. It works and needs no additional holes.

Just an idea which may be worth trying.
Back to Top
StavrosNZ View Drop Down
Captain
Captain


Joined: 24 October 2014
Status: Offline
Points: 210
Post Options Post Options   Thanks (0) Thanks(0)   Quote StavrosNZ Quote  Post ReplyReply Direct Link To This Post Posted: 08 March 2018 at 23:07
i would not cut holes of any significant size and number in the structural grid, this is arguably the most import part and most highly loaded part of your boat. Any holes will weaken the structure.
Stephen
2010 H400, Auckland, New Zealand
Back to Top
SausalitoDave View Drop Down
Commadore
Commadore


Joined: 13 October 2014
Location: Sausalito
Status: Offline
Points: 351
Post Options Post Options   Thanks (0) Thanks(0)   Quote SausalitoDave Quote  Post ReplyReply Direct Link To This Post Posted: 09 March 2018 at 01:33
I had this problem when I first got my 505.  I used a shop vac as Gaga described, and that works.  However, About 3 years ago I bought a dehumidifier that runs whenever the boat is not in use.  It has a humidistat, so it does not dry out the wood too much; however, it has completely eliminated mold anywhere (including below the sinks).  I keep the doors to the cabins and under the sinks open.  The boat is always perfect all the way down to the bilge.

Dave
Festina Lente
Sausalito, CA US
Back to Top
Carlosailfan View Drop Down
Lieutenant Commander
Lieutenant Commander
Avatar

Joined: 06 March 2014
Location: Belgium
Status: Offline
Points: 77
Post Options Post Options   Thanks (0) Thanks(0)   Quote Carlosailfan Quote  Post ReplyReply Direct Link To This Post Posted: 09 March 2018 at 07:49
Just an other approach, where is the water coming from ? In my opinion it would better to stop the ingress  than drilling holes to let it pass. I would never drill holes into the structural frame, this is the hart of the ship.
My 385 is really dry after my latest intervention to take away the water leakage of the overflow valve from the warm water heather.
Maybe i am a bit nerdy on that but water must be outside the boat and not inside. Geek
Best regards
/C
Back to Top
Peter-Blake View Drop Down
Admiral of the Fleet
Admiral of the Fleet
Avatar

Joined: 04 March 2008
Status: Offline
Points: 2407
Post Options Post Options   Thanks (0) Thanks(0)   Quote Peter-Blake Quote  Post ReplyReply Direct Link To This Post Posted: 09 March 2018 at 08:40
Do not drill a hole there:
1. it is the major structural area, as stated already
2. You will not find the lowest part of your boat if you drill a hole there!! Why? In this area Hanse  adds a thick bed of glue before inserting the inner structural construction of the hull. You will find a mountain of glue!
3. Use a endoscope camera for inspection though the existing holes in the next structural compartment beside the keel (See your foto). It works
4. Use a hose on a wet vacuum through the existing holes
5. Make sure you find the reason for the water ingress.


Blake 370
Back to Top
415 Singapore View Drop Down
Captain
Captain


Joined: 23 September 2013
Location: Singapore
Status: Offline
Points: 257
Post Options Post Options   Thanks (0) Thanks(0)   Quote 415 Singapore Quote  Post ReplyReply Direct Link To This Post Posted: 09 March 2018 at 08:44
I totally agree with Carlos, after solving a couple of minor issues mainly with Air con condensate pumps and poorly fitted jubilee clips our 415 has been remarkably dry even during the heavy monsoon rains we can get here.
All the best
Paul
Paul - Night Train - 415 #136
Back to Top
Ratbasher View Drop Down
Sub Lieutenant
Sub Lieutenant


Joined: 31 May 2017
Location: UK
Status: Offline
Points: 16
Post Options Post Options   Thanks (0) Thanks(0)   Quote Ratbasher Quote  Post ReplyReply Direct Link To This Post Posted: 09 March 2018 at 10:04
Agree with general consensus; donít do it. After an issue with leaking hull valves I described on another thread, I found that water channels through the bilges in a way you might not expect. The lowest part of the bilge is actually under the galley sink in a 400 and not by the bilge pump; indeed it seems like if it gets to the pump youíve serious ingress already.

To get rid of residual water in the void spaces I use the oil vacuum pump which has a long, flexible nozzle that can be used to search out water. Every so often I lift the boards to give everything a good clean and allow evaporation,

Rat

Hanse 400, south coast UK
Back to Top
toholthe View Drop Down
Lieutenant
Lieutenant


Joined: 20 September 2017
Location: Norway
Status: Offline
Points: 22
Post Options Post Options   Thanks (0) Thanks(0)   Quote toholthe Quote  Post ReplyReply Direct Link To This Post Posted: 09 March 2018 at 13:23

Thank you for all the answers.

I do not have any leak and my boat is completely dry (for now). After 10 years with different boats my experience is that there will eventually come water to the lowest level of the boat. It can be rain from a hatch we forgot to close, kids spilling drinks, leak from freshwater system, wet cloths dripping etc. etc.

In my previous boats which was older boats without an inner liner I have  kept the bottom of the boat completely dry. Understand with the Hanse I just have to live with the fact there will always be some moisture in the spaces not able to dry out by towel. I will buy a dedicated oil extractor for this purpose. Seems like a smart idea. I will also buy a 9V water alarm and put under the sink so I know if any water is entering the boat.



I hope I never get Diesel in these void spaces. Must be a nightmare to wash out.
Back to Top
Ratbasher View Drop Down
Sub Lieutenant
Sub Lieutenant


Joined: 31 May 2017
Location: UK
Status: Offline
Points: 16
Post Options Post Options   Thanks (0) Thanks(0)   Quote Ratbasher Quote  Post ReplyReply Direct Link To This Post Posted: 09 March 2018 at 16:24
Good luck. Your suggestion of a water alarm below the sink is a good one. I just check the area as part of daily checks and always look there first if Iím at all concerned but agree that an early warning device would be smart as long as itís not triggered by small amounts of the inevitable condensate.
Rat

Hanse 400, south coast UK
Back to Top
