Jeffa Autopilot Failure

 Post Reply Post Reply Page  <123>
Author
Message
High Time View Drop Down
Rear Admiral
Rear Admiral


Joined: 04 September 2012
Location: Portsmouth UK
Status: Offline
Points: 677
Post Options Post Options   Thanks (0) Thanks(0)   Quote High Time Quote  Post ReplyReply Direct Link To This Post Posted: 15 June 2018 at 13:33
Hi Steve

On thinking about it, if you change the drag link mounting point on the rudder quadrant you are changing the length of travel of the rudder feedback unit. This was calibrated as part of the original commissioning dockside set-up process  when the drag link was attached to the inner fixing point.

I had to dig out my copy of the AP24 Operators Manual to see how to do this. It's actually quite simple - effectively just turning the wheel to the end stop on starboard and port and resetting the zero point (since I had slightly turned feedback unit to better align with the draglink.

The rest of the commissioning set-up parameters don't need changing.

The DD1 is now driving the rudder on the outer fixing hole, which should reduce the load on the motor slightly. I haven't tried it at sea yet but it all appears to work fine at the dockside.

I'll report again if there are any problems 'at sea'.
Roger

High Time (415 #038)
Back to Top
fulanito View Drop Down
Sub Lieutenant
Sub Lieutenant


Joined: 29 April 2018
Location: Auckland
Status: Offline
Points: 5
Post Options Post Options   Thanks (0) Thanks(0)   Quote fulanito Quote  Post ReplyReply Direct Link To This Post Posted: 17 June 2018 at 03:38
Thanks Kipwrite for taking the time and effort to share this incident which could have had a potential deadly outcome.
The DD1 motor is stretched beyond its limits for a 50ft loaded vessel. I believe that it has been incorrectly "sized" to operate above the SWL using a calm to moderate seas rudder loading scenario.
Hanse is launching a new 508 model (same haul- new deck) in the next couple of months. It will be interesting to see what AP will be used.
Cheers
GG
Back to Top
KiaOraSailor View Drop Down
Sub Lieutenant
Sub Lieutenant
Avatar

Joined: 20 May 2018
Location: Marmaris
Status: Offline
Points: 9
Post Options Post Options   Thanks (0) Thanks(0)   Quote KiaOraSailor Quote  Post ReplyReply Direct Link To This Post Posted: 17 June 2018 at 08:54
Hi Kipwrite,
I'm new here in this forum and your post had triggered me to contact Jefa in Denmark about a similar problem that we encountered on our H505 #92. Autopilot drive failed recently.
The support by Jefa was superb - after few hours I received detailed response by their technical lead on that, including drawings and results from discussions with Hanse designers.
Their statements were mainly:
1) the DD1 ist NOT undersized for the 505 (misleading statement on their website, and the 505 has rather low rudder forces for a 55ft boat - yes, I would agree!)
2) it is important to install the drive correctly:
"We have talked about your case here internal, and have may be a clue what could be the reason on the failure of the drive unit. Please look at the attached buildcard on part no.6, the draglink from the drive to the tillerarm on the quadrant. Please check that your draglink is mounted in the outer hole as on the buildcard. And not in the inner hole I could expect was done. It will give a much stronger drive, and are constructed for that."

So, when looking at your photo this is/was not done on your boat... have you meanwhile checked or changed?
This is from their buildcard:



Good luck

Walter
Back to Top
kipwrite View Drop Down
Commander
Commander


Joined: 14 October 2015
Location: New York
Status: Offline
Points: 94
Post Options Post Options   Thanks (0) Thanks(0)   Quote kipwrite Quote  Post ReplyReply Direct Link To This Post Posted: 17 June 2018 at 17:10
Walter
Thanks for your note.
Iím very curious to hear about how your Jeffa unit failed, and if it jammed the helm.
Was your drag link mounted to the wrong hole as well?
In the end I had my DD1 unit repaired and reinstalled, and the drag link is now mounted on the correct, outer hole on the tiller arm as shown on the build card.
My intent is to use the DD1 a back up unit to a linear hydraulic drive I will use as a primary.
It appears I may have to add a mounting point on the quadrant to get this larger hydraulic unit to fit. Thereís not quite enough room for any of these to fit into the tight space and connect to the tiller arm.
Curious if anyone out there had tackled this?
Once this is all sorted I will post photos.
Kipwrite
Back to Top
KiaOraSailor View Drop Down
Sub Lieutenant
Sub Lieutenant
Avatar

Joined: 20 May 2018
Location: Marmaris
Status: Offline
Points: 9
Post Options Post Options   Thanks (0) Thanks(0)   Quote KiaOraSailor Quote  Post ReplyReply Direct Link To This Post Posted: 23 June 2018 at 18:47
Hi Kipwrite,
Luckily the drive did not jam the helm in our situation and I can't even tell you how it failed since this had happened to a charter crew ... and I still don't know about the root cause.
Meanwhile the unit is repaired and back on board.
The technical crew confirmed that the tiller arm connection was correct before.
I will still try to rely on the design and give it a second try. Will keep you updated here.

Cheers
Walter
Back to Top
Rubato View Drop Down
Admiral
Admiral
Avatar

Joined: 12 July 2006
Location: Canada
Status: Offline
Points: 1714
Post Options Post Options   Thanks (0) Thanks(0)   Quote Rubato Quote  Post ReplyReply Direct Link To This Post Posted: 25 June 2018 at 17:28
Originally posted by High Time High Time wrote:

Hi Steve

On thinking about it, if you change the drag link mounting point on the rudder quadrant you are changing the length of travel of the rudder feedback unit. This was calibrated as part of the original commissioning dockside set-up process  when the drag link was attached to the inner fixing point.

I had to dig out my copy of the AP24 Operators Manual to see how to do this. It's actually quite simple - effectively just turning the wheel to the end stop on starboard and port and resetting the zero point (since I had slightly turned feedback unit to better align with the draglink.

The rest of the commissioning set-up parameters don't need changing.

The DD1 is now driving the rudder on the outer fixing hole, which should reduce the load on the motor slightly. I haven't tried it at sea yet but it all appears to work fine at the dockside.

I'll report again if there are any problems 'at sea'.

Roger, of course you are right. I was a little too quick in my response keying on the term "rudder feedback unit". As you pointed out, it actually isn't connected to the rudder, it's connected to the drive (should be called drive feedback unit :) ) and thus calibration is definitely needed.
Steve

Hanse 400e, #168
Back to Top
Samtutuki View Drop Down
Commander
Commander


Joined: 12 November 2013
Location: Australia
Status: Offline
Points: 96
Post Options Post Options   Thanks (0) Thanks(0)   Quote Samtutuki Quote  Post ReplyReply Direct Link To This Post Posted: 26 June 2018 at 02:40
My latest model 315 also has a DD1.

 In spite of Jeffa and Hanse saying DD1 can handle a 50 foot boat I am "impressed' that what is good enough for a 315 is also good enough on a 505!!
Back to Top
KiaOraSailor View Drop Down
Sub Lieutenant
Sub Lieutenant
Avatar

Joined: 20 May 2018
Location: Marmaris
Status: Offline
Points: 9
Post Options Post Options   Thanks (0) Thanks(0)   Quote KiaOraSailor Quote  Post ReplyReply Direct Link To This Post Posted: 17 July 2018 at 17:28
Hi Kipwrite,

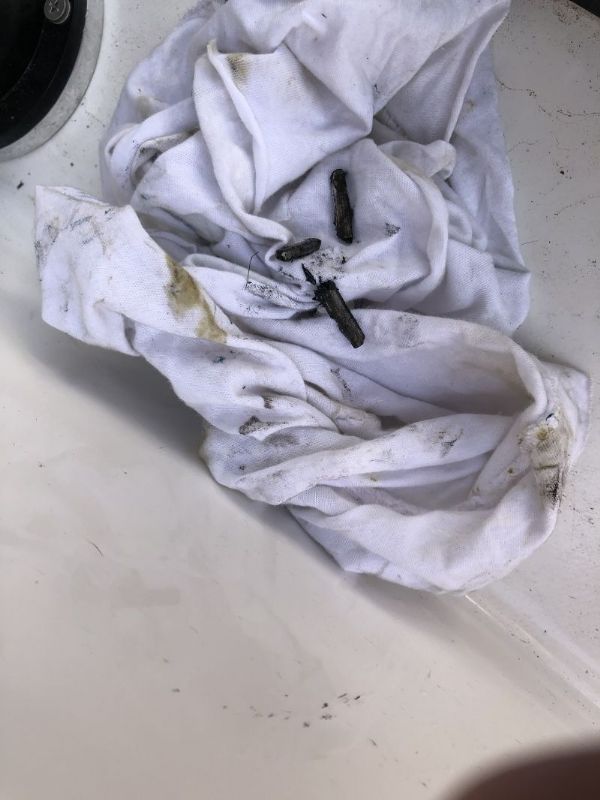

Finally I can give you a short statement about what was wrong on our autopilot drive.
However, it's not much to report, but our tech crew told me that
"... The graphite contact pins were Ątwistedď (or in wrong position?) which had blown the fuse.
So the contact pins and fuse were replaced and the entire unit overhauled..."
No pictures of the damage available, sorry.

I remember that we always felt quite unusual vibrations on the steering wheels when running on engine - even with much less than normal speed. So, I considered that these permanent vibrations might have had impact back to the AP drive? But under sails everything fine and no vibrations.

Has anyone made similar experience? Perhaps caused by the folding prop?

So I got back to Jefa with that info and idea but they neither have a clue of the root cause for the AP failure nor believe that it might have been the vibrations in the steering system.
Back to Top
jdderijke View Drop Down
Sub Lieutenant
Sub Lieutenant
Avatar

Joined: 13 February 2016
Location: Caribean
Status: Offline
Points: 11
Post Options Post Options   Thanks (0) Thanks(0)   Quote jdderijke Quote  Post ReplyReply Direct Link To This Post Posted: 29 December 2018 at 16:14
Well.....I had the exact same problem with my Hanse 505 #114... On our trip from the Cape Verde Islands to Grenada 2 weeks ago. In the middle of the night (and about 80 miles out from Mindelo) our DD1 failed and locked the steering completely. We also removed the connection between the quadrant and the drive unit and thereby regained control of the rudder. We hand steered back to Mindelo and contacted Jeffa. Support was good, but it was almost impossible to get parts send to the Cape Verdes in time. So we took apart the drive unit and discovered that 3 teeth broke off from the central planetairy gear axle. The reason the system locked was that 1 tooth fell down between the housing and the gear  and locked the gear, while the other 2 where kept inside the gearwheel by grease and simply had no room to fall down. We had a machine shop weld new teeth on the gearwheel, tested it and tested it again, and left for our second try to cross the Atlantic. After about 1 week, we heard a bang, but the pilot continued to work. We disassembled the pilot and found another broken tooth (one of the welded ones). We decided to handsteer the rest of the crossing to Grenada, over 1000 miles. In Grenada we received a new central planetairy gear axle and mounted it, and we rotated the central drive axle 180 degrees.

My analysis is as follows....
With a well balanced sail plan and because the rudder is balanced, the rudder always performs within 1-3 degrees off the central position, this translates into 2 or 3 teeth on the central planetary gear axle. When the boat is going on a broad reach (150 TWA, 130 AWA), and starts to surf down waves...the rudder can actually push VERY hard against the drive unit (not the other way around), also putting all the force on these 2 or 3 teeths.
After 7000 miles of action they simply started to break, 1 by 1. Because there is not much space there, the broken teeth stayed in place, and the only thing you would notice is a soft bang every now and then.....untill the rudder reaches a more extreme position....around 10-12 degrees off centre, and then one of the broken teeth fell down in a little cavity under the gear and locked everything....

Moving the connection on the quadrant more to the outside will reduce the forces that are send back from the rudder to the drive unit, so that seems like a good idea to me.......however, the DD1 may be ok for the Hanse 505 balanced rudder forces in normal operation....but surfing down waves will destroy the gears.....even when you move the connection point on the quadrant to the outside.

I suggest also to rotate the gears (central drive axle and central planetary axle) by taking off the drive arm from the unit, and mounting it upside down. Thereby rotating the central axle 180 degrees....

I will investigate further and decide later if i keep this unit or replace it with a T2 hydraulic system...

JD, SY Privateer

The central planetairy gear axle with the broken teeth.....





JD
Back to Top
kipwrite View Drop Down
Commander
Commander


Joined: 14 October 2015
Location: New York
Status: Offline
Points: 94
Post Options Post Options   Thanks (0) Thanks(0)   Quote kipwrite Quote  Post ReplyReply Direct Link To This Post Posted: 29 December 2018 at 16:43
Thanks for this thorough report.

Your analysis sounds correct. But Iím confused by your suggestion in favor of turning the drive arm upside down. Can you clarify?

With respect to fitting a larger drive, between my dealer and I we could not locate an alternative to the dd1 that would fit in the space. I installed a Hydrovane, and Iím trying not to use the Jeffa autopilot when seas are up.

Was your autopilot installed in the correct hole on the tiller arm?
Kipwrite
Back to Top
