220v connector behind shore power panel

 Post Reply Post Reply Page  123>
Author
Message
SamsonII View Drop Down
Lieutenant Commander
Lieutenant Commander


Joined: 19 July 2016
Location: Norway
Status: Offline
Points: 62
Post Options Post Options   Thanks (0) Thanks(0)   Quote SamsonII Quote  Post ReplyReply Direct Link To This Post Topic: 220v connector behind shore power panel
    Posted: 09 August 2016 at 20:37
Hi!

I am looking for the white 3-pin connector used behind the shore power panel from Calira. Three of the are in use, but in my boat still three are free.

Where can this part be bought?


Stein-Erik Carlsen

Hanse 370e 2006 #41 "Samson II"
Back to Top
alettaenmarcel View Drop Down
Admiral
Admiral
Avatar

Joined: 15 August 2006
Location: Netherlands
Status: Offline
Points: 1024
Post Options Post Options   Thanks (0) Thanks(0)   Quote alettaenmarcel Quote  Post ReplyReply Direct Link To This Post Posted: 09 August 2016 at 21:20
Just cut it off and buy a universal connector Kroonsteentje in dutch language.
Gr Marcel
Kids Dingys 72-79 ,Several Windsurfboards 79-86 OK dingy competitions 86-92 , Trotter Pandora Race 92-98, Friendship 28 Sport 98-05, Hanse 370 06-......
Back to Top
JUTTER View Drop Down
Lieutenant
Lieutenant


Joined: 05 November 2015
Location: Belgium
Status: Offline
Points: 45
Post Options Post Options   Thanks (0) Thanks(0)   Quote JUTTER Quote  Post ReplyReply Direct Link To This Post Posted: 09 August 2016 at 21:51
Hi SamsonII,

I bought the connector and the pins from the Conrad webshop. These are the details from my order form:
  • TE Connectivity 350766-1  1row x 3 poles Order code 749745-8
  • TE Connectivity Stiftcontact Geschlizt 0,2-0,8mm2 Order code.: 1196661-89, you need 3 of them
 At www.conrad.be you will find all the details by the Order code

Claude



JUTTER, Hanse 350#0256, 2010, deep keel, Zeeland
Back to Top
SamsonII View Drop Down
Lieutenant Commander
Lieutenant Commander


Joined: 19 July 2016
Location: Norway
Status: Offline
Points: 62
Post Options Post Options   Thanks (0) Thanks(0)   Quote SamsonII Quote  Post ReplyReply Direct Link To This Post Posted: 10 August 2016 at 07:02
Thanks Claude!

Ordered the parts you specified from ELFA in Norway - they where in Stock and cheap!

BR
Stein-Erik


Edited by SamsonII - 10 August 2016 at 07:03
Stein-Erik Carlsen

Hanse 370e 2006 #41 "Samson II"
Back to Top
MarcoC View Drop Down
Admiral
Admiral
Avatar

Joined: 23 April 2009
Location: Sweden, Stockh.
Status: Offline
Points: 1598
Post Options Post Options   Thanks (0) Thanks(0)   Quote MarcoC Quote  Post ReplyReply Direct Link To This Post Posted: 14 August 2016 at 10:36
Hi. Did you get the exact right one? I tried to find one from Elfa Sweden years ago and they did not have it. Could you give the link to the product in Norway?
"Älva"

Hanse 370#671

Stockholm, Sweden

www.wesailhanse.se big wheel, deep draught iron keel, 3 cabins,Yanmar 3JH4E, Sparcraft rig.
Back to Top
MarcoC View Drop Down
Admiral
Admiral
Avatar

Joined: 23 April 2009
Location: Sweden, Stockh.
Status: Offline
Points: 1598
Post Options Post Options   Thanks (0) Thanks(0)   Quote MarcoC Quote  Post ReplyReply Direct Link To This Post Posted: 14 August 2016 at 10:39
BTW, you have 220v connectors also in the front cabin lockers if you dd not know. There is a sall lid that yoy can open.
"Älva"

Hanse 370#671

Stockholm, Sweden

www.wesailhanse.se big wheel, deep draught iron keel, 3 cabins,Yanmar 3JH4E, Sparcraft rig.
Back to Top
Fendant View Drop Down
Admiral
Admiral


Joined: 03 November 2012
Location: Switzerland
Status: Offline
Points: 1219
Post Options Post Options   Thanks (0) Thanks(0)   Quote Fendant Quote  Post ReplyReply Direct Link To This Post Posted: 14 August 2016 at 13:09
Hi Marco,
this is interesting News :)

can you post a foto or a drawing on the Location please

Thx
Frank
Back to Top
Idelfix View Drop Down
Commadore
Commadore
Avatar

Joined: 01 February 2009
Location: Sweden
Status: Offline
Points: 385
Post Options Post Options   Thanks (0) Thanks(0)   Quote Idelfix Quote  Post ReplyReply Direct Link To This Post Posted: 14 August 2016 at 22:25
"Keep sailing in free wind"

http://suhrfa.blogspot.se


Back to Top
MarcoC View Drop Down
Admiral
Admiral
Avatar

Joined: 23 April 2009
Location: Sweden, Stockh.
Status: Offline
Points: 1598
Post Options Post Options   Thanks (0) Thanks(0)   Quote MarcoC Quote  Post ReplyReply Direct Link To This Post Posted: 15 August 2016 at 08:44
You can find drawings on my web www.wesailhanse.se and Manuals

http://wesailhanse.se/370_documents/370_documents_hanse/hanse370_11_electric_230v_outlets_options_de_en.pdf

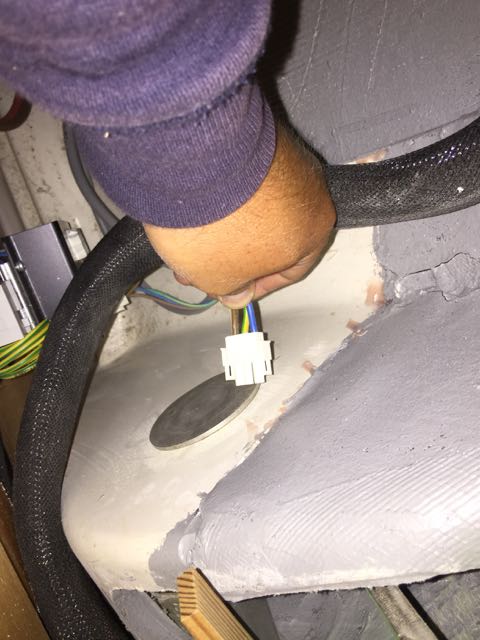

Open the lockers and you will see a lid in the back of one of them and if you open it and grab all the cables you see you should find a 230V cable connector.
"Älva"

Hanse 370#671

Stockholm, Sweden

www.wesailhanse.se big wheel, deep draught iron keel, 3 cabins,Yanmar 3JH4E, Sparcraft rig.
Back to Top
SamsonII View Drop Down
Lieutenant Commander
Lieutenant Commander


Joined: 19 July 2016
Location: Norway
Status: Offline
Points: 62
Post Options Post Options   Thanks (0) Thanks(0)   Quote SamsonII Quote  Post ReplyReply Direct Link To This Post Posted: 15 August 2016 at 09:51
Hi Marco!

I will test the connectors - they arrived today.  Item number 300-12-003 for the connector and 300-11-996 for the crimp-pins.

In my boat (build #41) I cant find any 220v cabling in the forward cabin.  Is the lid in the back wall? The bottom is solid in both lockers.
Stein-Erik Carlsen

Hanse 370e 2006 #41 "Samson II"
