508: ideas for the front lazarette

 Post Reply Post Reply
Author
Message
tobo2 View Drop Down
Captain
Captain


Joined: 14 February 2014
Location: Switzerland
Status: Offline
Points: 260
Post Options Post Options   Thanks (0) Thanks(0)   Quote tobo2 Quote  Post ReplyReply Direct Link To This Post Topic: 508: ideas for the front lazarette
    Posted: 28 October 2019 at 21:11
For the front lazarette of our future 508 we are collecting ideas to make a reasonable compartment with shelves a.s.o. Any suggestions and solutions?
Back to Top
colinc View Drop Down
Captain
Captain
Avatar

Joined: 08 May 2019
Location: UK
Status: Offline
Points: 169
Post Options Post Options   Thanks (0) Thanks(0)   Quote colinc Quote  Post ReplyReply Direct Link To This Post Posted: 29 October 2019 at 12:41
Hey.  Just spent the last week doing this in our 505 locker.   Will post some photos.

I thought for a while about doing it in stainless steel tubing before reverting to wood.   Vertical beams in the four corners with screws running into the fore and aft wood bulkheads.  Then horizontal beams running down each side screwed into those verticals.   The top horizontal is just below the roof. The lower on rests on the fixed fore locker but is also screwed to the verticals.  I then have one more set of horizontals just over half way up.

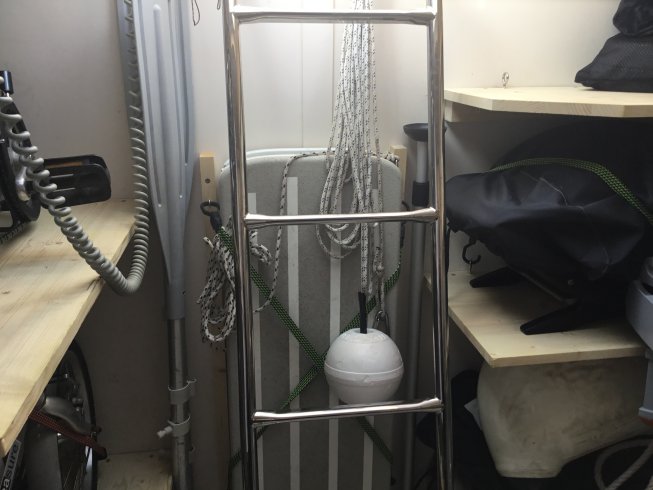

At the rear I then have two sets of shelves on either side.  On starboard they run fore-aft and on the port side they run port-starboard.   This gives large storage for bikes and smaller storage for various stuff.  It also leaves room around the ladder and does not block the hatch access at all.

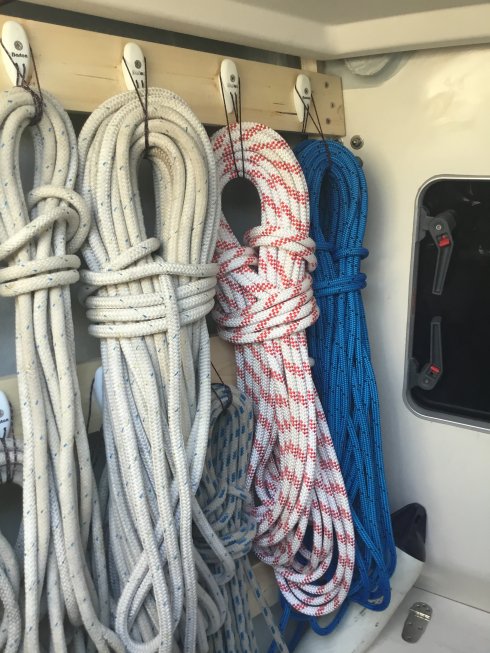

Finally I have hooks on the forward port and starboard sides for spare ropes and other stuff that will hang.  This means I still have easy access to the fore lockers for anchor and bow thruster.

I am really pleased with the result.  It uses the large space for easy access storage whilst still retaining the roomy space for fenders and sails and dinghies etc.
Back to Top
colinc View Drop Down
Captain
Captain
Avatar

Joined: 08 May 2019
Location: UK
Status: Offline
Points: 169
Post Options Post Options   Thanks (1) Thanks(1)   Quote colinc Quote  Post ReplyReply Direct Link To This Post Posted: 01 November 2019 at 19:55
Pictures attached .....






Back to Top
tobo2 View Drop Down
Captain
Captain


Joined: 14 February 2014
Location: Switzerland
Status: Offline
Points: 260
Post Options Post Options   Thanks (0) Thanks(0)   Quote tobo2 Quote  Post ReplyReply Direct Link To This Post Posted: 01 November 2019 at 21:42
Wow, Colin this gives me a lot of inputs. Where do you the fenders? We don't want to climb into the Lazarette to grab them.
Unfortunately I will only have time in February to see our 508 and work on her for the first as the dealer screwed up the exposition of our yacht at Dusseldorf. But the guys of Wendel and Rados will assist me.


Edited by tobo2 - 01 November 2019 at 21:52
