Joining the heard on seacocks..

 Post Reply Post Reply Page  12>
Author
Message
Matt1 View Drop Down
Rear Admiral
Rear Admiral
Avatar

Joined: 10 March 2019
Location: Hamble, UK
Status: Offline
Points: 664
Post Options Post Options   Thanks (0) Thanks(0)   Quote Matt1 Quote  Post ReplyReply Direct Link To This Post Topic: Joining the heard on seacocks..
    Posted: 06 December 2022 at 15:03
I'm becoming guilty of heard mentality after reading on these forums about replacing Hanse's standard seacocks after 5 years...

I'm sure it's a bit over the top, but since I have one that is stiff anyway and next winter the boat will turn 5 years old I'm thinking I may do it this spring.

I'll only do the below waterline ones, so on my 418 that's; The heads inlet, holding tank outlet, galley sink outlet and maybe the saildrive. The through hull skin fittings are already plastic, so I'm thinking of fitting true design for the valves. Anyone know of the sizes involved? Also, any recommendations on jointing compound?

Thanks


Hanse 418 #64 EmBer. Hamble, UK

Back to Top
pdc78 View Drop Down
Commander
Commander
Avatar

Joined: 27 May 2016
Location: UK
Status: Offline
Points: 128
Post Options Post Options   Thanks (0) Thanks(0)   Quote pdc78 Quote  Post ReplyReply Direct Link To This Post Posted: 06 December 2022 at 18:17
Sorry I can't help you with the sizes for your boat, but I was all set to replace the seacocks using the existing Tru-design thru hulls on the 345 earlier in the year when the boat was out for a quick weekend lift out and I found that the valves were very well  bonded to the plastic thru hulls.  Not wanting to get caught with a seeping  thru hull or worse, I deferred the job to the next longer lift out and I now have  replacement thru hulls as well.  They're not too expensive in the overall  scheme of things.
FYI
H345 #269
Back to Top
SimonGH View Drop Down
Commander
Commander
Avatar

Joined: 08 September 2021
Location: CT
Status: Offline
Points: 104
Post Options Post Options   Thanks (0) Thanks(0)   Quote SimonGH Quote  Post ReplyReply Direct Link To This Post Posted: 07 December 2022 at 15:16
are you seeing noticeable degradation of the valves, or just being preventative?
The ones on my 2014 look brand new and of similar brand / quality of what i would get to replace them...?

Back to Top
Captain Cook View Drop Down
Admiral
Admiral
Avatar

Joined: 23 May 2006
Location: Denmark
Status: Offline
Points: 1009
Post Options Post Options   Thanks (0) Thanks(0)   Quote Captain Cook Quote  Post ReplyReply Direct Link To This Post Posted: 07 December 2022 at 17:30
If you are sailing in a lake, you may expect a lifespan of 10-15 years of your seacocks.
But! - if you sail in salty water, do like Hanse Werft recommends, and change after 5 years.
On the outside, the brass looks like new, because the damage is on the inside of the seacock.

Freya H400 #27 (2006), 40HP 3JH4E, 2-cabin, 3-blade Flexofold, Aries LiftUp Windvane, Exturn 300, Jefa DD1,Simrad NX40,Icom M603(VHF)+M802(SSB)
Back to Top
Yeoey View Drop Down
Commander
Commander


Joined: 22 August 2016
Location: Australia
Status: Offline
Points: 121
Post Options Post Options   Thanks (0) Thanks(0)   Quote Yeoey Quote  Post ReplyReply Direct Link To This Post Posted: 23 January 2023 at 10:05
hello Matt1

As another post commented - more critical in salt water - the through hull component is Trudesign I believe and the replacement seacocks simply screw in with a matching Trudesign seacock  - you may seek advice from others but I found that the manufacturers website provided all the info I needed together with Sydney agents advising to use them as well as others- in the industry I trust -

If you think it is not an issue and wish to check, simple close your main toilet seacock then very carefully remove the 2 clips and very, very carefully twist and remover the hose - be prepared to be converted to the herd advice if your boat is used in salty water and a salt water flush - if I could work out how to post a photo I would show you mine - the side wall of one virtually crumbled in my hands - I also replaced the seacock on the sail drive keg with a bronze replacement although the Volvo agent inspected it after removal and said it was all ok.

Peter
Peter
Sea Rambler 415 # 137
Back to Top
Captain Cook View Drop Down
Admiral
Admiral
Avatar

Joined: 23 May 2006
Location: Denmark
Status: Offline
Points: 1009
Post Options Post Options   Thanks (0) Thanks(0)   Quote Captain Cook Quote  Post ReplyReply Direct Link To This Post Posted: 23 January 2023 at 16:26
A comment on the way to post photos and documents:
"Quick Reply" is for text only.
"Post Reply" (Find the button on the left hand side) will give you the choice to add a file(pdf), choose the icon to the left of the tree.
The tree-icon "Insert Image" opens the opportunity to add a photo, but most photos are too large, since the limit is 256Kb.
There are a lot of free programs to shrink your photo. I use ViewNX2 from Nikon.
:Kjeld


Edited by Captain Cook - 23 January 2023 at 17:36
Freya H400 #27 (2006), 40HP 3JH4E, 2-cabin, 3-blade Flexofold, Aries LiftUp Windvane, Exturn 300, Jefa DD1,Simrad NX40,Icom M603(VHF)+M802(SSB)
Back to Top
Ian Coverdale View Drop Down
Captain
Captain


Joined: 19 June 2019
Location: Gosport
Status: Offline
Points: 192
Post Options Post Options   Thanks (0) Thanks(0)   Quote Ian Coverdale Quote  Post ReplyReply Direct Link To This Post Posted: 23 January 2023 at 19:39
We had pin-hole leaks after just EIGHT years. Replaced all below waterline fittings with TruDesign.

Cheers.
Ian & Andrea
SV Gabrielle (H445)
Liveaboards - currently Gosport UK for winter 2023/24.
www.facebook.com/sailinggabrielle
Back to Top
Yeoey View Drop Down
Commander
Commander


Joined: 22 August 2016
Location: Australia
Status: Offline
Points: 121
Post Options Post Options   Thanks (0) Thanks(0)   Quote Yeoey Quote  Post ReplyReply Direct Link To This Post Posted: 23 January 2023 at 21:22
thanks CC

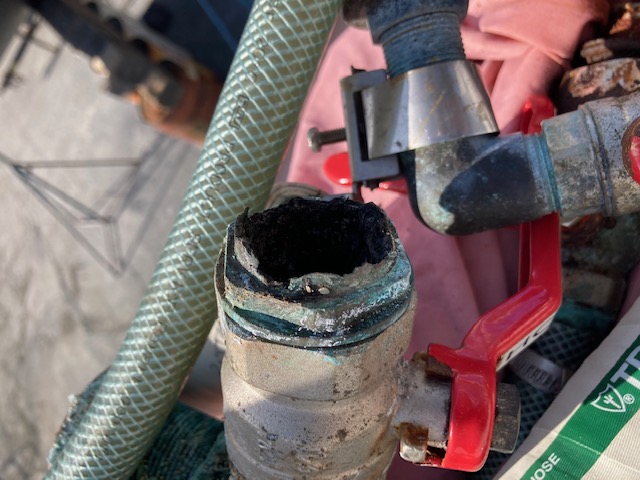

Downloaded an app and this is my “result”- Sea Rambler was launched in May 2014 and I changed them in January 2020- the side walls were very brittle and crumbled when the hose was being removed -


Peter
Sea Rambler 415 # 137
Back to Top
landlocked View Drop Down
Commadore
Commadore
Avatar

Joined: 12 April 2005
Location: Canada
Status: Offline
Points: 489
Post Options Post Options   Thanks (0) Thanks(0)   Quote landlocked Quote  Post ReplyReply Direct Link To This Post Posted: 30 March 2023 at 17:47
I have joined this club and replaced all seven of my through-hulls and seacocks with true-design parts.   I will say the initiation fee for this club is not cheap!    I didn't do any detailed analysis of the old parts, but they all seemed sound except for the forward holding tank outlet.   When I started to remove the hose from that part it fell off very easily.   It seems the problem was not with the seacock itself but with the part that adapts the threaded seacock to a barbed fitting for the hose.   Perhaps if that adapter could have been removed and replaced a cheaper solution may have worked.   Another note:   I always thought my fittings were all bonded, but when I was removing hoses I realized that Hanse had bonded the aft head fittings and galley sink fitting but not the forward head fittings, where this problem appeared.


"Kerkyra" 400e #042
Back to Top
Schnupfel View Drop Down
Lieutenant
Lieutenant
Avatar

Joined: 15 June 2019
Location: Gosport / UK
Status: Offline
Points: 33
Post Options Post Options   Thanks (0) Thanks(0)   Quote Schnupfel Quote  Post ReplyReply Direct Link To This Post Posted: 21 May 2023 at 22:44
Hi Matt,
Have you changed the seacocks already?
Would be interested to hear how it went.
Thank you!
H418 #121 KAPLA
