Lewmar hatches

 Post Reply Post Reply Page  12>
Author
Message
Heikki View Drop Down
Lieutenant Commander
Lieutenant Commander


Joined: 15 November 2014
Location: France
Status: Offline
Points: 79
Post Options Post Options   Thanks (0) Thanks(0)   Quote Heikki Quote  Post ReplyReply Direct Link To This Post Topic: Lewmar hatches
    Posted: 01 February 2019 at 15:40
Hi,

I am planning to replace the acrylics to my hatches. I know my Hanse 400e of 2006 has Lewmar hatches size 60 and obviously Mk 2, but are they low profile or medium profile? Can't find the information anywhere. I am not sure if there is any difference, but the acrylic suppliers seem to ask the profile. Any recommendations from where to purchase?

Regards,
Heikki
Melanie
Hanse 400e #121
Back to Top
lechamoix View Drop Down
Sub Lieutenant
Sub Lieutenant


Joined: 07 November 2018
Status: Offline
Points: 1
Post Options Post Options   Thanks (0) Thanks(0)   Quote lechamoix Quote  Post ReplyReply Direct Link To This Post Posted: 04 February 2019 at 10:28
Hi,

I would try Lewmar direct. I am chasing them over the 2G flush hatches fitted to my 2009MY 400 (and  leaking as I hear is typical). www.lewmar.com

The website has an identifier for post 2007 fitment or contact them for earlier.

techsupport@lewmar.com

If anyone has had any recent success with Lewmar over replacing the 2G hatches, I would welcome your insight. From what I can see, pretty much all of them have ingress issues.

Many thanks in advance.

HleC

Back to Top
jefflewis View Drop Down
Sub Lieutenant
Sub Lieutenant
Avatar

Joined: 06 February 2019
Location: Sydney
Status: Offline
Points: 1
Post Options Post Options   Thanks (0) Thanks(0)   Quote jefflewis Quote  Post ReplyReply Direct Link To This Post Posted: 06 February 2019 at 04:21
Hi there, I was wondering if anyone had any updates on replacing or fixing these flush hatches.  2 of mine have separated and soon will fall right off.

thanks
Jeff

Jeff Lewis
Hanse 400e
Sydney
Back to Top
StavrosNZ View Drop Down
Captain
Captain


Joined: 24 October 2014
Location: New Zealand
Status: Offline
Points: 348
Post Options Post Options   Thanks (0) Thanks(0)   Quote StavrosNZ Quote  Post ReplyReply Direct Link To This Post Posted: 07 February 2019 at 00:24
I have 2010 400 with lewmar flush hatches. All the flush series hatches on my boat (9 of them) suffered from powder coat adhesion issues and paint finish flaked of them all.

Lewmar/Hanse offered replacement set but my cost to remove old ones and install the new ones. After much backward and forward i forced lewmar to make me a replacement set with anodised aluminium finish rather than powder coated. (Should be anodised from new in my humble opinion). These will now last the lifetime of the boat.

Note: cabin top has balsa core, Hanse fit hatches with self tapping screws directly into balsa core relying only on Sika to keep the water out. Whilst you have your old hatches off, drill old screw holes out to 12mm and fill with epoxy, when you fit new hatches you will drill and screw into epoxy eliminating the risk of water entry into deck core.

Regards acrylic covers, the flush series hatches have no rim, the rim on normal hatch protects rubber seal and glue from UV damage a fait bit. On the flush series hatch seal and glue are in direct light and therefore subject to degradation much faster. I have had external cloth covers made that cover all of the flush series hatches including side windows (port lights), these take the brunt of UV and get replaced ever 10 years but acrylic lenses stay like new.

When i replaced my hatches i bedded them on non setting butyl rather than Sika or the like, no leaks in the past 5 years. Your cabin top and side flex way more than you think so any setting sealant will be problematic.


Edited by StavrosNZ - 07 February 2019 at 19:18
Stephen
2010 H400 #691, Auckland, New Zealand
Back to Top
Heikki View Drop Down
Lieutenant Commander
Lieutenant Commander


Joined: 15 November 2014
Location: France
Status: Offline
Points: 79
Post Options Post Options   Thanks (0) Thanks(0)   Quote Heikki Quote  Post ReplyReply Direct Link To This Post Posted: 17 February 2019 at 17:08
Hi,

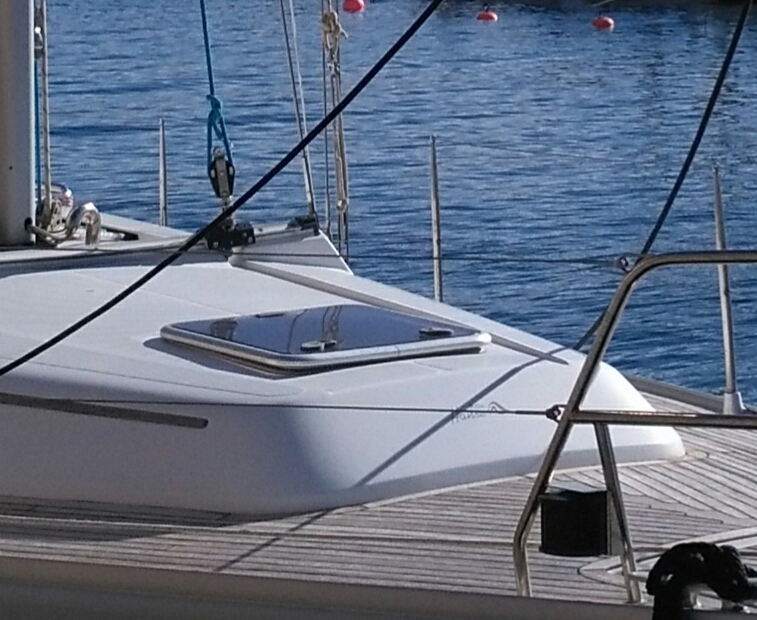

Does anybody know wether the Lewmar hatch in the photo is Low Profile or Medium Profile? The boat is Hanse 400e #121 manufactured in 2006.

Regards,
Heikki
Melanie
Hanse 400e #121
Back to Top
alettaenmarcel View Drop Down
Admiral
Admiral
Avatar

Joined: 15 August 2006
Location: Netherlands
Status: Offline
Points: 1032
Post Options Post Options   Thanks (0) Thanks(0)   Quote alettaenmarcel Quote  Post ReplyReply Direct Link To This Post Posted: 17 February 2019 at 20:18
It is low profile
Kids Dingys 72-79 ,Several Windsurfboards 79-86 OK dingy competitions 86-92 , Trotter Pandora Race 92-98, Friendship 28 Sport 98-05, Hanse 370 06-......
Back to Top
Gregor View Drop Down
Admiral
Admiral
Avatar

Joined: 11 February 2006
Location: Netherlands
Status: Offline
Points: 1253
Post Options Post Options   Thanks (0) Thanks(0)   Quote Gregor Quote  Post ReplyReply Direct Link To This Post Posted: 04 November 2019 at 18:00
hi,
If you search my site, you’ll find photos and articles on replacing the hatches and windows on my boat. Made all windows myself.
Uisge Beatha

Currently sailing Dehler 36 JV (2002)
Previous boat: Hanse 311 #80

http://www.uisge-beatha.eu
Back to Top
iemand View Drop Down
Vice Admiral
Vice Admiral
Avatar

Joined: 13 February 2004
Location: Germany
Status: Offline
Points: 885
Post Options Post Options   Thanks (0) Thanks(0)   Quote iemand Quote  Post ReplyReply Direct Link To This Post Posted: 04 November 2019 at 20:49
they are low profile hatches!

BR Thomas
Hanse 312 MJ 2004 - Hanse 370e MJ 2007
Back to Top
Gregor View Drop Down
Admiral
Admiral
Avatar

Joined: 11 February 2006
Location: Netherlands
Status: Offline
Points: 1253
Post Options Post Options   Thanks (0) Thanks(0)   Quote Gregor Quote  Post ReplyReply Direct Link To This Post Posted: 04 November 2019 at 21:04
What do you mean with "low profile hatches"?
Uisge Beatha

Currently sailing Dehler 36 JV (2002)
Previous boat: Hanse 311 #80

http://www.uisge-beatha.eu
Back to Top
Heikki View Drop Down
Lieutenant Commander
Lieutenant Commander


Joined: 15 November 2014
Location: France
Status: Offline
Points: 79
Post Options Post Options   Thanks (0) Thanks(0)   Quote Heikki Quote  Post ReplyReply Direct Link To This Post Posted: 04 November 2019 at 21:20
Hi Gregor,

Thanks for your photos!

This type of Lewmar hatches are either low profile or medium profile. Medium profile is more solid than low profile, for example the acrylic is 2 mm thicker.

Regards,
Heikki
Melanie
Hanse 400e #121
Back to Top
