Main Sail Traveller

 Post Reply Post Reply Page  12>
Author
Message
Fiona View Drop Down
Commander
Commander


Joined: 28 October 2011
Location: Sweden
Status: Offline
Points: 100
Post Options Post Options   Thanks (0) Thanks(0)   Quote Fiona Quote  Post ReplyReply Direct Link To This Post Topic: Main Sail Traveller
    Posted: 04 June 2013 at 16:49
Hi1
I am a bit frustrated with the single point sheting point for the main sail.
Since there are not alot of posts in this section I searched the 320 section and there was 6 pages on this subject. The thing is, even though there are a number of sucessful installations of treveller on the 320, when I looked at my 325 there is no way to fit one on top of the benches whitout hitting the compass part of the pedistal with the main sheeting. The only place I found was on the floor right where the single point are today, the width at that point is 82,5 cm. The question is, is that enough or will there be absolutly no difference? Can you achive the same twist with just the vang and the single point sheeting? Any ideas, suggestions???

Cheers!

Magnus
Back to Top
samuel View Drop Down
Admiral of the Fleet
Admiral of the Fleet


Joined: 26 December 2004
Location: United Kingdom
Status: Offline
Points: 2683
Post Options Post Options   Thanks (0) Thanks(0)   Quote samuel Quote  Post ReplyReply Direct Link To This Post Posted: 04 June 2013 at 19:28
Quite honestly i believe that if i really cranked the necessary pressure on my vang my boom would break.
That scenario has happened with some cabin top mainsheets on certain models as recorded in this forum
So moving the forces still further forward would really be detrimental to the boom
I have fitted some sacrificial shackles between top vang block & boom & i have broken them on at least 6 occasions
I was berthed along side a Parker 31 & noted that the boom on that boat was at least 50% deeper & slightly fatter
The 315 boom looks decidedly skinny in comparison. I suspect your boom is comparable to mine

I do not know how your boat is laid out but have you considered some sort of adjustable rope bridle across the cockpit or cabin top or would that restrict movement too much

Edited by samuel - 04 June 2013 at 19:32
Daydream Believer- Hanse 311- No GBR9917T- Bradwell Essex
Back to Top
Sylvie View Drop Down
Sub Lieutenant
Sub Lieutenant


Joined: 04 June 2013
Location: Bangor
Status: Offline
Points: 13
Post Options Post Options   Thanks (0) Thanks(0)   Quote Sylvie Quote  Post ReplyReply Direct Link To This Post Posted: 04 June 2013 at 20:57
hi Magnus,

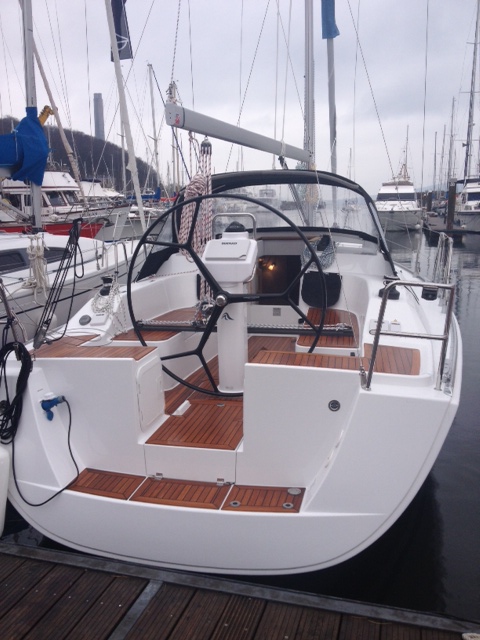

i have a hanse 325 with a mainsheet traveller on top of the seats in front of the pedestal and mainsheet does not catch on the pedestal or compass....the mainsheet is attached to underside of boom on the forward saddle


regards

michael..........hanse 325   sylvie
Back to Top
Fiona View Drop Down
Commander
Commander


Joined: 28 October 2011
Location: Sweden
Status: Offline
Points: 100
Post Options Post Options   Thanks (0) Thanks(0)   Quote Fiona Quote  Post ReplyReply Direct Link To This Post Posted: 04 June 2013 at 21:39
Hi Michael!
I just realized that you can have the sheeting a bit further in towards the front on the boom just like you have it.

Did you fit the traveller your self or was it done by Hanse?
Can you tell me alittle about how it is fitted, what make it is etc.
Is it bolted through the re-enforcement or tapered in it?

Cheers!

Magnus
Back to Top
Sylvie View Drop Down
Sub Lieutenant
Sub Lieutenant


Joined: 04 June 2013
Location: Bangor
Status: Offline
Points: 13
Post Options Post Options   Thanks (0) Thanks(0)   Quote Sylvie Quote  Post ReplyReply Direct Link To This Post Posted: 04 June 2013 at 21:54
Hi Magnus,

the traveller was supplied by hanse, i will look on friday when i am at the boat, to see what the make is......the traveller appears to be bolted on top of the seat but i will check...i also got the purchase increased on the mainsheet


regards

michael
Back to Top
Fiona View Drop Down
Commander
Commander


Joined: 28 October 2011
Location: Sweden
Status: Offline
Points: 100
Post Options Post Options   Thanks (0) Thanks(0)   Quote Fiona Quote  Post ReplyReply Direct Link To This Post Posted: 04 June 2013 at 22:13
Great!
Thankīs Michael!

Brgds
Magnus
Back to Top
Brufan View Drop Down
Rear Admiral
Rear Admiral
Avatar

Joined: 16 December 2010
Location: Belgium
Status: Offline
Points: 629
Post Options Post Options   Thanks (0) Thanks(0)   Quote Brufan Quote  Post ReplyReply Direct Link To This Post Posted: 05 June 2013 at 08:18
The traveller is tapered in alu re enforcement plate fitted in laminate (2 rectangular plates on both side).

You can also look to a nice retrofit solution on a H320 by Drumduff : http://www.myhanse.com/forum_posts.asp?TID=7119&PN=2&title=mainsheet-removable-traveller

I currently work / think on upgrading my H 355.  I've already put a pad eye on cockpit floor.  Later I will add a removable traveller fitted on bench coamings and a bottle screw on the pad eye.
Bruno

hanse 355 - 57

S/Y Spicy Ginger

White hull, 2 cabins, Volvo D1-30, Selden rig, removable mainsheet track system, Simrad (now B&G)-Jefa autopilot.
Back to Top
Fiona View Drop Down
Commander
Commander


Joined: 28 October 2011
Location: Sweden
Status: Offline
Points: 100
Post Options Post Options   Thanks (0) Thanks(0)   Quote Fiona Quote  Post ReplyReply Direct Link To This Post Posted: 05 June 2013 at 10:51
Brufan!
Is that not a bit risky to just have the traveller is tapered in alu re enforcement plate?
But it would be the easiest way to do it...

Btw what is the padeye for?
(btw. you donīt want to buy my cockpit cushions for the 355?)

Cheers!
Magnus
Back to Top
Brufan View Drop Down
Rear Admiral
Rear Admiral
Avatar

Joined: 16 December 2010
Location: Belgium
Status: Offline
Points: 629
Post Options Post Options   Thanks (0) Thanks(0)   Quote Brufan Quote  Post ReplyReply Direct Link To This Post Posted: 05 June 2013 at 14:51
Fiona,
As far as i know ALL tracks on our Hanse are fitted this way.  Even the stong self-tacking jibsheet traveller is.  In fact all (or so) fittings are done this way even winches, clutches, deck organisers, windlass, anchor fitting, ... (not certain about steeringwheel pedestal but I found no nut from now)
Only pushpit and pullpit legs has nuts and contersunk.

The padeye (or chainplate indeed) is for mainsheet.  I did the same as Bjoris (see here : http://www.myhanse.com/forum_posts.asp?TID=3564&title=mailsail-sheet) but may chainplate is fitted further aft.  I've put it just under where optional mainsheet track (wich I don't have) should go.

Why are you selling your cockpit cushions ?  You can PM me.

Bruno

hanse 355 - 57

S/Y Spicy Ginger

White hull, 2 cabins, Volvo D1-30, Selden rig, removable mainsheet track system, Simrad (now B&G)-Jefa autopilot.
Back to Top
Sylvie View Drop Down
Sub Lieutenant
Sub Lieutenant


Joined: 04 June 2013
Location: Bangor
Status: Offline
Points: 13
Post Options Post Options   Thanks (0) Thanks(0)   Quote Sylvie Quote  Post ReplyReply Direct Link To This Post Posted: 08 June 2013 at 09:17
Hi Magnus,

The traveller is made by Lewmar

The traveller is not bolted in....there is a triangular cross section slot on the underside of the traveller track.

There must be lugs of some sort glassed in underneath the seat that stick up to slide into the triangular slot to hold the track in place

Underneath the seat there is a wooden block glassed in ,so I presume the lugs are attached to that

I haven't explained it very well I hope you understand what I mean !

If you put a wooden block underneath your cockpit seats at the right place I'm sure you could attached the traveller track somehow
Regards michael.........hanse 325.   Sylvie

Back to Top
