upgrade winch

 Post Reply Post Reply Page  12>
Author
Message
FrankS View Drop Down
Sub Lieutenant
Sub Lieutenant
Avatar

Joined: 06 March 2016
Location: The Netherlands
Status: Offline
Points: 9
Post Options Post Options   Thanks (0) Thanks(0)   Quote FrankS Quote  Post ReplyReply Direct Link To This Post Topic: upgrade winch
    Posted: 02 May 2022 at 14:38
Hello all,
I am planning to upgrade my Lewmar 40ST EVO winch to electric, using a conversion kit. Does  anyone of you have experience in this ? Ideas, warnings, tips ?
Anyone experience in performing the job yourself on an 345 ?
Anxious about your reactions,
greetz,
Frank

Hanse 345 2016 "STYX"
Back to Top
Peter-Blake View Drop Down
Admiral of the Fleet
Admiral of the Fleet
Avatar

Joined: 04 March 2008
Status: Offline
Points: 2454
Post Options Post Options   Thanks (0) Thanks(0)   Quote Peter-Blake Quote  Post ReplyReply Direct Link To This Post Posted: 02 May 2022 at 17:19
Sorry canīt help with the electric winch.
But i do not know why you need a electric winch on a Hanse 345.

On my Hanse 370 i do not have a electric winch. And i hope i will never need it.

Two little tips:

1. Have you ever serviced your manual winches? It makes a huge diffrence if you service the winches after some years. Fresh serviced winches work like new, espeacially under load.
So i would at first service the winches, and than you can decide wether you need it electric or not....

2. If you need the winch for hoisting the mainsail, maybe it is better to check the mainsailsliders in the mast. Maybe you change to ballbearing sliders. This helps a lot......
I can hoist my main (heavy DCX fullbatten Mainsail With ballbearing sliders)  without a winch nearly up to 1-2m before the masttop. Only the last 1-2m i need the winch.



Edited by Peter-Blake - 02 May 2022 at 17:26
Blake 370
Back to Top
Carlosailfan View Drop Down
Captain
Captain
Avatar

Joined: 06 March 2014
Location: Belgium
Status: Offline
Points: 193
Post Options Post Options   Thanks (0) Thanks(0)   Quote Carlosailfan Quote  Post ReplyReply Direct Link To This Post Posted: 03 May 2022 at 07:53
Hi Frank, i did it on our 385 STB side. Nice job, took a little time to make it the good way, means installing the fuses and putting the cables in place and completely out of sight. I made also the connection to the main power-board, so you need to investigate a bit the wiring diagram of yours to see if it fits or not.
The most complex part is, when the conversion kit is in place under the 40ST EVO you have to connect / Install the heavy electro-motor. Not all the bolts are that reachable and this takes time to fix it correctly seen the place to access is very limited.
I am very satisfied with the upgrade so good decision to install. If you need additional info don't hesitate to contact me.  Best regards, Carlo
Best regards
/C
Back to Top
Fendant View Drop Down
Admiral
Admiral


Joined: 03 November 2012
Location: Switzerland
Status: Offline
Points: 1529
Post Options Post Options   Thanks (0) Thanks(0)   Quote Fendant Quote  Post ReplyReply Direct Link To This Post Posted: 03 May 2022 at 10:53
Frank,
we have ordered this an an option when we bought the boat on both sides. My wife and myself would not want to miss it. Especially when you get older the winches become more and more useful.
The motor is on our boat accessible from the aft cabin though a maintenance opening. Therefore the mechanical fitting job looks ok for me. The posting above mentions certain difficulties, this seems to be normal on retrofits on modern production boats.
I would be more concerned about the electrical part. Our wiring is on the main board under the nav table. The winches are supplied from the 330 Ah house bank

Good Luck, at least you will learn some new bad words if you have a helper fSmileor the installation
Frank
Back to Top
415 Singapore View Drop Down
Rear Admiral
Rear Admiral


Joined: 23 September 2013
Location: Singapore
Status: Offline
Points: 623
Post Options Post Options   Thanks (0) Thanks(0)   Quote 415 Singapore Quote  Post ReplyReply Direct Link To This Post Posted: 03 May 2022 at 12:40
Hi, we had two electric winches installed by Hanse when we ordered Night Train and are very happy that we did. Although I would agree with Peter that you should check if the winches have been serviced properly and that the sliders on the main are in good condition. We can pull our main up to within a couple of metres before needing the winch.
On the 415 when you ordered electric winches Hanse doubled the service battery bank to 330 Ah as part of the option, so you may need to look at where you can put the additional batteries. Under load the winches use a lot of power.
All the best
paul
Paul - Night Train - 415 #136
Back to Top
415 Singapore View Drop Down
Rear Admiral
Rear Admiral


Joined: 23 September 2013
Location: Singapore
Status: Offline
Points: 623
Post Options Post Options   Thanks (0) Thanks(0)   Quote 415 Singapore Quote  Post ReplyReply Direct Link To This Post Posted: 03 May 2022 at 12:46
Sorry forgot to add my other thought, it might be easier and cheaper to buy an electric winch handle like an E-Wincher, then you can use it on any winch?
Paul
Paul - Night Train - 415 #136
Back to Top
Carlosailfan View Drop Down
Captain
Captain
Avatar

Joined: 06 March 2014
Location: Belgium
Status: Offline
Points: 193
Post Options Post Options   Thanks (0) Thanks(0)   Quote Carlosailfan Quote  Post ReplyReply Direct Link To This Post Posted: 03 May 2022 at 19:32

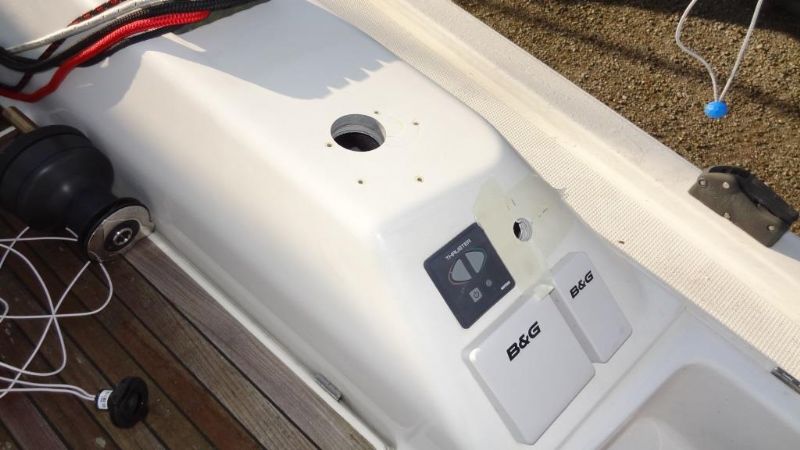

E Winch on H385


Best regards
/C
Back to Top
Carlosailfan View Drop Down
Captain
Captain
Avatar

Joined: 06 March 2014
Location: Belgium
Status: Offline
Points: 193
Post Options Post Options   Thanks (0) Thanks(0)   Quote Carlosailfan Quote  Post ReplyReply Direct Link To This Post Posted: 03 May 2022 at 19:35
Best regards
/C
Back to Top
johanlavenius View Drop Down
Sub Lieutenant
Sub Lieutenant


Joined: 04 April 2021
Location: Stockholm
Status: Offline
Points: 5
Post Options Post Options   Thanks (0) Thanks(0)   Quote johanlavenius Quote  Post ReplyReply Direct Link To This Post Posted: 04 May 2022 at 15:29
I did this on my 348 this spring. You don't need electric winches on a 345/348 but it's really nice to have.
Back to Top
FrankS View Drop Down
Sub Lieutenant
Sub Lieutenant
Avatar

Joined: 06 March 2016
Location: The Netherlands
Status: Offline
Points: 9
Post Options Post Options   Thanks (0) Thanks(0)   Quote FrankS Quote  Post ReplyReply Direct Link To This Post Posted: 05 May 2022 at 08:37
Thanks for all your input so far !
@ Frank (Fendant) : do you mean the existing maintenance opening on the stern side or did you have to create a new one ? If so, do you have a picture to determine the right place ? (just to diminish the amount of new learned bad words..Wink )

Hanse 345 2016 "STYX"
