Where is the log/depth and wind transducers connec

Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic

   I have a 370 from 2008.
We know the depth/log connector joins with the wind transducer before going off to the nav station.

Does anyone know where this join is?

We suspect it is behind the Hanging locker on the port side in the front cabin.

There is a small access hatch at the top of this locker but its not big enough to find where the connection is made.

I am happy to cut extra hatches in the back of the locker to find it but would like to have an idea where to start.

Many thanks
Jon

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
Pride of Waterford Members Profile Send Private Message Find Members Posts Add to Buddy List Captain Joined: 31 December 2013 Location: chichester Status: Offline Points: 253	Post Options Post Reply Quote Pride of Waterford Report Post Thanks(0) Quote Reply Topic: Where is the log/depth and wind transducers connec Posted: 15 January 2021 at 22:46
	I have a 370 from 2008. We know the depth/log connector joins with the wind transducer before going off to the nav station. Does anyone know where this join is? We suspect it is behind the Hanging locker on the port side in the front cabin. There is a small access hatch at the top of this locker but its not big enough to find where the connection is made. I am happy to cut extra hatches in the back of the locker to find it but would like to have an idea where to start. Many thanks Jon
	Brod Port Lairge

toholthe Members Profile Send Private Message Find Members Posts Add to Buddy List Commander Joined: 20 September 2017 Location: Norway Status: Offline Points: 129	Post Options Post Reply Quote toholthe Report Post Thanks(0) Quote Reply Posted: 15 January 2021 at 23:58
	What instruments do you have? If it is IS12 then it goes all the way to the instrument. If IS20 then it’s connected to Simnet somewhere.

Pride of Waterford Members Profile Send Private Message Find Members Posts Add to Buddy List Captain Joined: 31 December 2013 Location: chichester Status: Offline Points: 253	Post Options Post Reply Quote Pride of Waterford Report Post Thanks(0) Quote Reply Posted: 16 January 2021 at 08:25
	We have IS20 instruments. There is just one simnet cable going to the nav station. So the simnet cable from the wind transducer at the swan neck under the mast must join the log/depth cable and the combined signals are sent up to the nav station. I just cannot find where these two meet. Probably behind the port hanging locker but need to know before I start cutting inspection hatches. Any ideas would be helpful.
	Brod Port Lairge

H8jer Members Profile Send Private Message Find Members Posts Add to Buddy List Admiral Joined: 14 September 2010 Location: Denmark Status: Offline Points: 1503	Post Options Post Reply Quote H8jer Report Post Thanks(0) Quote Reply Posted: 16 January 2021 at 08:34

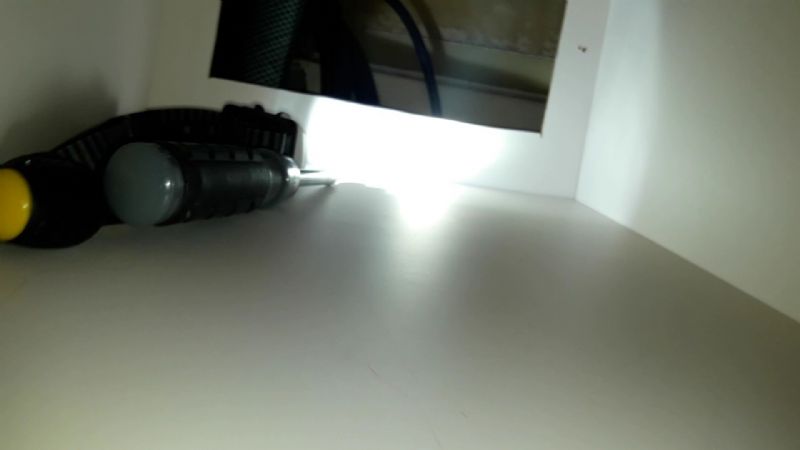

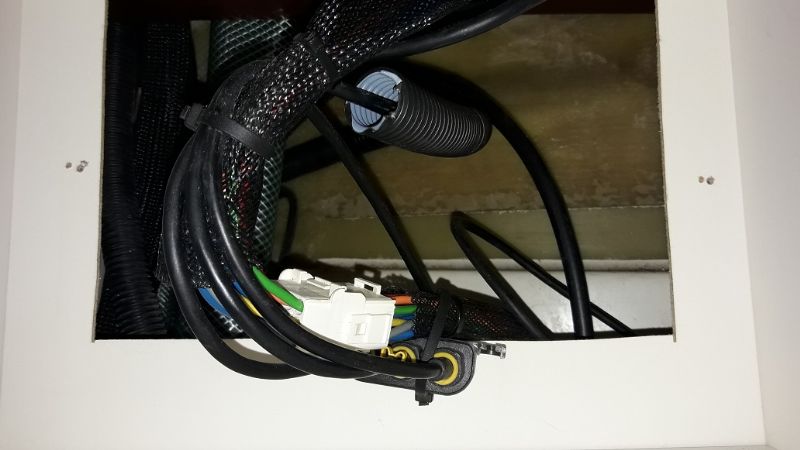

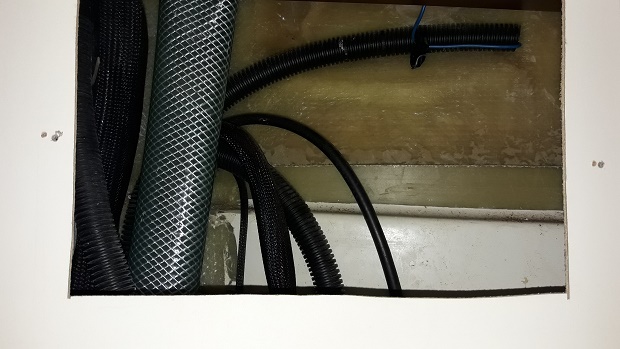

	Hi Jon Yes there is a Simnet-Joiner behind the hatch in the locker in the forward cabin port-side. There is no need to make a new hatch. These pictures are from a from a video I made with the phone. The last picture is taken looking straight down. I added some labels from memory. To access the simnet joiner, You just have to grap the mesh-bundle/harness and pull it out. It is either the thick or thin net-harness. Can't remember if I had to cut 1-2 cable-ties or else it is hanging loose so it extends almost a meter and can be pulled into the cabinet-shelf. I had an faulty simrad508 wind-transducer that short-circuited the entire nmea-network. So I had to remove the wind-transducer from that very same joiner here, or I would loose the depth-transducer also. Also when accessing this area - try to fill some water into the tank and then feel by hand if water is running on the outside of the water-hose - this can be fixed with new sika-flex/tec7 around the tank-filer neck/cap. Btw. an inspection camera is a must-have for Hanse-owners! I got a cheap one from Lidl that has proven it value many times...https://www.youtube.com/watch?v=QzfXYLueUbE /H8jer Edited by H8jer - 16 January 2021 at 09:54
	Hanse 370#487 30HP 3-cabin

H8jer Members Profile Send Private Message Find Members Posts Add to Buddy List Admiral Joined: 14 September 2010 Location: Denmark Status: Offline Points: 1503	Post Options Post Reply Quote H8jer Report Post Thanks(0) Quote Reply Posted: 16 January 2021 at 14:00

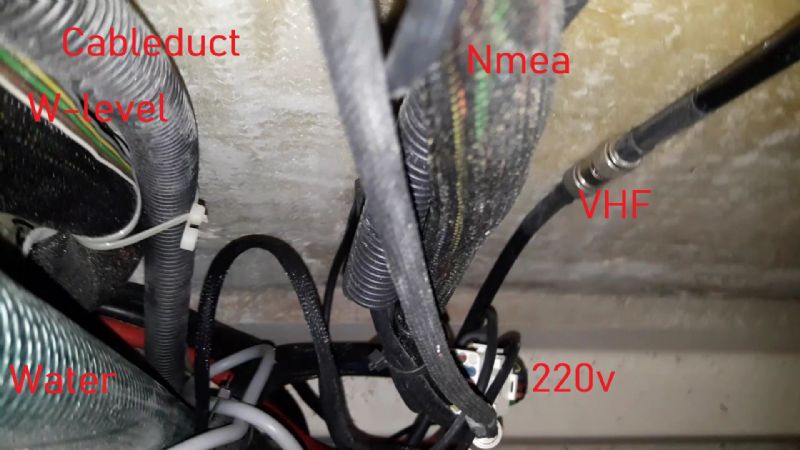

	Hi again I just swung by the boat to measure the voltage on the starter- and thruster/winch-batteries (all 12.9v) and could take some fresh photos It is the thick harness you should release and pull up. The 220v is the gray wire shown in my first post. /H8jer Edited by H8jer - 16 January 2021 at 14:02
	Hanse 370#487 30HP 3-cabin

Pride of Waterford Members Profile Send Private Message Find Members Posts Add to Buddy List Captain Joined: 31 December 2013 Location: chichester Status: Offline Points: 253	Post Options Post Reply Quote Pride of Waterford Report Post Thanks(0) Quote Reply Posted: 17 January 2021 at 17:24
	Hi H8jer, Thank you thats really helped. Found the connector just as you said. The photos really helped. All best Jion
	Brod Port Lairge

H8jer Members Profile Send Private Message Find Members Posts Add to Buddy List Admiral Joined: 14 September 2010 Location: Denmark Status: Offline Points: 1503	Post Options Post Reply Quote H8jer Report Post Thanks(0) Quote Reply Posted: 17 January 2021 at 17:25
	You're welcome
	Hanse 370#487 30HP 3-cabin
